Description
Applications: shipping, logistics, transportation, warehouse management, stock control, food distribution, restaurant, retail shop, warehouse, commercial delivery, enterprise task allocation etc.
Physical Characteristics
Display: 5.2” IPS FHD 1920x1080P
Touch Panel: Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power: Li-ion, rechargeable, 8000mAh
Expansion Slot: 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces: USB2.0 Type-C, OTG
Audio: speaker, 2 microphones
Keypad: 4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key
Sensors: Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor
Performance Characteristics
CPU: Cortex-A53 Quad-core 2.3GHz
RAM+ROM: 3GB+32GB
Expansion: Supports up to 128 GB Micro SD card
Operation system: Android 11
Wireless connectivity
WLAN: IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN (America): 3G: WCDMA B1/B2/B4/B5/B8, 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/ B34/B38/B39/B40/B41
Bluetooth:v4.1+HS
GNSS: GPS/AGPS, GLONASS, BeiDou; internal antenna
Data Collection: Zebra SE4710 2D Imager Barcode Scanner
1D barcode Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D barcode Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Camera: 13MP Autofocus with flash
Developing Environment
SDK: Software Development Kit
Language Java
Tool: Eclipse / Android Studio
User Environment
Operating Temp.: -4℉ to 122℉ / -20℃ to 50℃
Storage Temp.: -40℉ to 158℉ / -40℃ to 70℃
Humidity: 5%RH – 95%RH non condensing
Drop Specification: Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete
Make sure this fits by entering your model number.
POWERFUL HARDWARE SOLUTIONS — This handheld device adopts Cortex-A53 Octa core CPU & Android 11 OS, supports running multiple tasks smoothly. & It comes with 5.2” FHD 1920×1080 screen & Corning Gorilla Glass multi-touch panel, gloves and wet hands supported. 13MP camera.
PROFESSIONAL 1D 2D & QR BAR CODE READING — Built-in (Zebra) SE4710 2D imager scan engine. Extraordinary performance on blurry/broken barcodes. Support scan wedge function. With certified Google service, you can easily utilize Android-based inventory applications or develop customized warehouse management system. With pre-installed Keyboard Emulator, you can set different scan mode (trigger on press, continuous scan etc.), or set barcode output formats, prefix/ suffix / check digits etc.
OUTSTANDING BATTERY DURABILITY — Integrated 8000mAH Li-ion battery for +12 hours working time. Standby time over 500 hours. Support quick recharging. No worries for power in the field.
MULTIPLE WIRELESS DATA COMMUNICATION CAPABILITY — Support WiFi 802.11a/b/g/n dual bands, bluetooth 4.1, support WCDMA & 4G LTE for anytime anywhere connectivity (AT&T, T-Mobile cellular network & SMS). Support NFC/GPS.

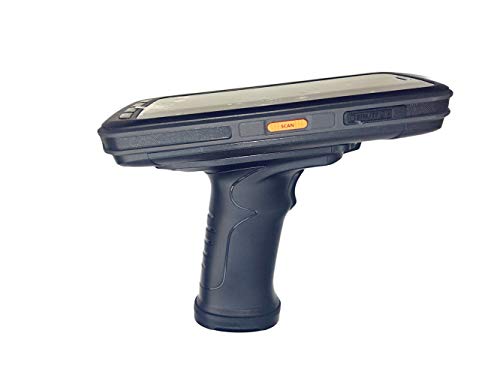

RUGGED & ERGONOMIC DESIGN— With rugged construction and IP65 rated sealing, workers can still expect reliable performance if they drop it carelessly, use it in dusty areas, or even get it wet. Suitable for enterprise field use in demanding industrial environment. The ergonomic trigger handle design ease using for intensive scan environment, improves work efficiency.
