Description
Physical Parameters
Dimension: 232*158*22
Weight: 810g
Display: 8 inch LCD screen, 1920×1200 IPS screen, capacitive touch screen
Keyboard: Android menu, Homepage, Return, Volume, Barcode, ON/OFF, Reset
Camera: 5 million pixels front camera, 13 million pixels rear camera with AF
Headset: 3.5mm audio Interface, has MIC and Single loudspeaker
Googleplay store: support
Others: Gravity sensor / Compass / Gyroscopes / Vibrating motor
Power support: 3.8V, 10000mAh Lithium Battery
Standby current: <10mA
CPU configurations
Operating System: Android 9.0
CPU: MSM8953, 8 core CPU, 2GHz
RAM: 4GB
FLASH: 64GB
Extended Storage: Micro SD Maximum 128G
External port: 5 pin Micro USB port (support OTG), recharge port, headphone port
Wireless Communication: Bluetooth 4.0
GPS: GPS+A-GPS+GLONASS
WIFI: IEEE 802.11a/b/g/n/ac dual bands WiFi (2.4G, 5G)
LTE FDD: B2/B4/B5/B7/B8/B12/B13/B14/B25/B26
LTE TDD:B41
WCDMA:B1/B2/B4/B8
Barcode Scanner

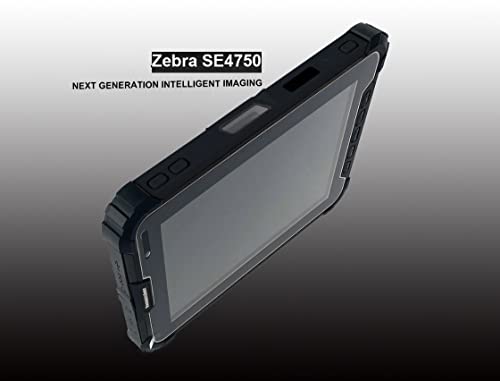

2D scan engine: Zebra SE4750-SR
Supported 1D symbologies: UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, RSS
Supported 2D symbologies: PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet.
Environmental Characteristics
Industrial Protection Grade: IP67 waterproof & dustproof
Drop Grade: Drop resistance from 1.2m
Working Temperature: -10℃ ~ +50℃
Storage Temperature: -40℃ ~ +60℃
Humidity: 5%-95% relative humidity; no condensation
Make sure this fits by entering your model number.

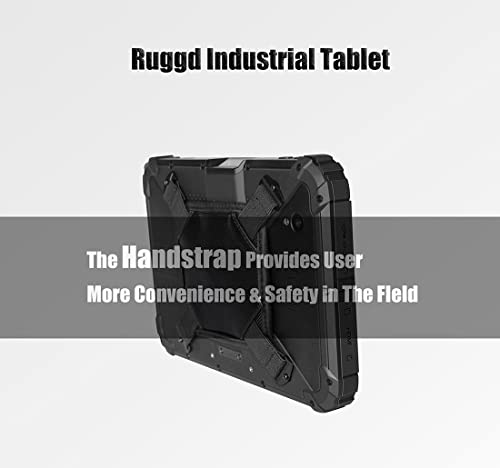

RELIABILITY FOR THE FIELD — Ruggedized design and IP67 water-proof / dust-proof housing, ideal for harsh industrial environment. Can withstand moisture, extreme temperatures, drops, shocks, vibration, rain, dirt, mud, sand, water, altitude, humidity.

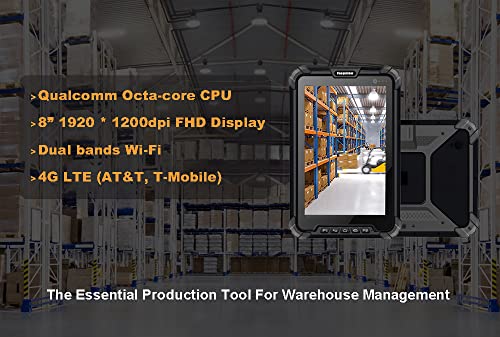

SUPERIOR HARDWARE SOLUTIONS FOR ENTERPRISE MOBILITY — Powerful Qualcomm Octa-core 2GHz CPU allows for high speed running of multiple tasks. Android OS. 4GB system memory, 64GB storage drive. Up to 256G expandable memory through micro SD. 8-Inch 1920*1200 Full HD screen with 500 NITS brightness for outdoor. 13MP camera.
FAST BARCODE READING — This industrial tablet PC integrates Zebra SE4750-SR 2D scan engine, ideal for intensive scan demand. Can read any 1D, 2D & QR barcodes incl. UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2/5, CODABAR, PDF417, Datamatrix, QR code etc. at the rate 104 times/s. The scan wedge feature enables web-based warehouse & inventory applications or excel input. SDK available for customized development.

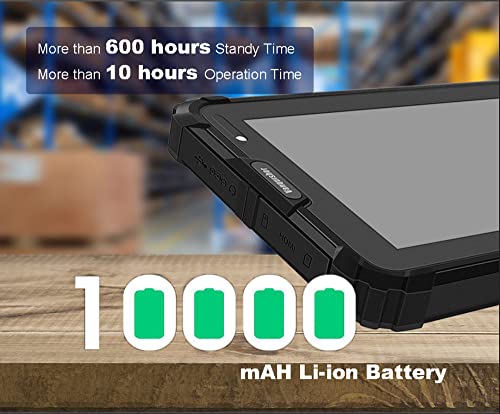

OUTSTANDING BATTERY DURABILITY — With integrated 10000mAh Li-ion battery, and the extraordinary low power design, the tablet standby time is up to 500hours, allows full day of field work, without worrying about data lossing in the field. An essential production tool to get jobs done, ideal for enterprise mobile solutions.
MULTIPLE DATA CAPTURING AND NETWORK CONNECTIVITY — Bluetooth 4.2. WiFi 802.11a/b/g/n/ac (2.4G & 5G dual bands). Support US 4G LTE (AT&T, T-Mobile compatible). Incorporated 13.56MHz RFID reader (NFC supported). Support GPS (A-GPS).
